Skrūves tēraudam pie tērauda PH2 caurspīdīgs cinks 4,8x19mm

pieskarties attēlam, lai pietuvinātu

Apraksts

Skrūve tēraudam pie tērauda, bezkrāsains cinks

Lasīt vairāk Lasīt mazāk

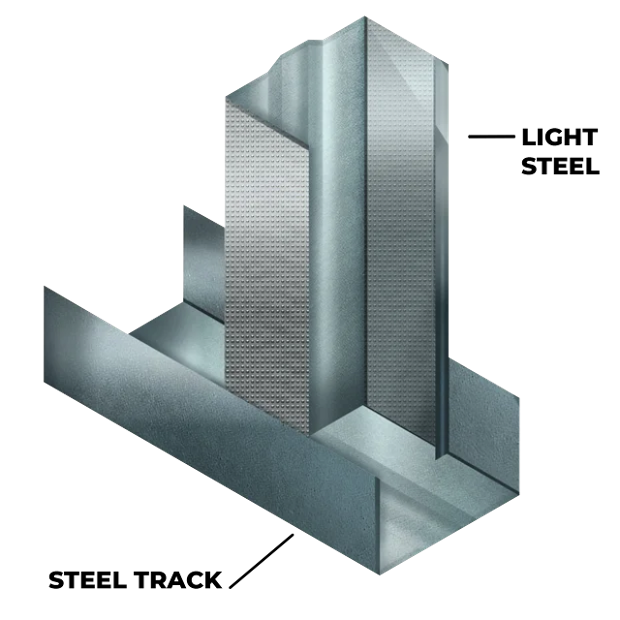

Izmantošana

Tēraudam pie tērauda

Lasīt vairāk Lasīt mazāk

Saskaņotais standarts EN 14566:2008+A1:2009

Pieprasīt informāciju

Specifikācijas

Identifikācija

Preces numurs: 48IP19MC
GTIN: 8715274028149

Tehniskās specifikācijas

Savienošanas veids: Savilkts ar plastmasu
Vada materiāls: Standarta stiepes oglekļa tērauds
Apgriezieni minūtē: 2300, 2500, 3000, 3300 RPM

Stiprinājuma specifikācija

Apdare: Caurspīdīgs cinks
Pielietojuma vide: Iekštelpās
Punkta veids: 17. veida griešanas punkts
Punkta leņķis: 110 °
Skrūvju galvas veids: Plakans
Skrūvju padziļinājums: Philips 2
Skrūvju vītnes veids: Tek
Stiprinājumu daudzums uz sloksnes/spoles: 50 - 50
Skrūvju garums: 19.0 mm
Skrūvju diametrs: 4.8 mm

CE specifikācija

DOP No: 48IP19MC
Pakalpojuma klase: 1
Iekšējais vītņotais diametrs: 3.8 mm
Vītņotās daļas garums: 13.9 mm
Saskaņotais standarts: EN 14566:2008+A1:2009

Netehniskas specifikācijas

Iepakojuma daudzums: 1000

Loģistikas specifikācija

Neto svars: 2.4 kg

Saistītie instrumenti

Lejupielādes

48IP19MC_lv_CommercialProductSheet_1.5_1752233813164 PDF 1 Mb
48IP19MC_lv_DeclarationOfPerformanceDoP_1.1eu_1750109920586 PDF 60 Kb
