Skrūve kokam pie bieza tērauda SQ2 weatherex 4,2x41mm

pieskarties attēlam, lai pietuvinātu

Apraksts

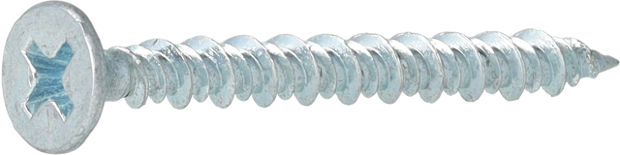

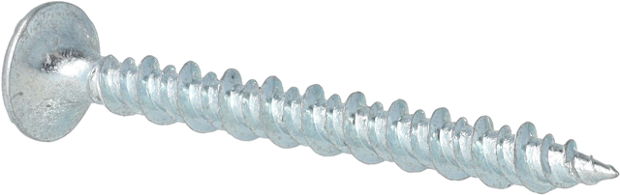

Skrūve kokam pie bieza tērauda, Weatherex II

Lasīt vairāk Lasīt mazāk

Izmantošana

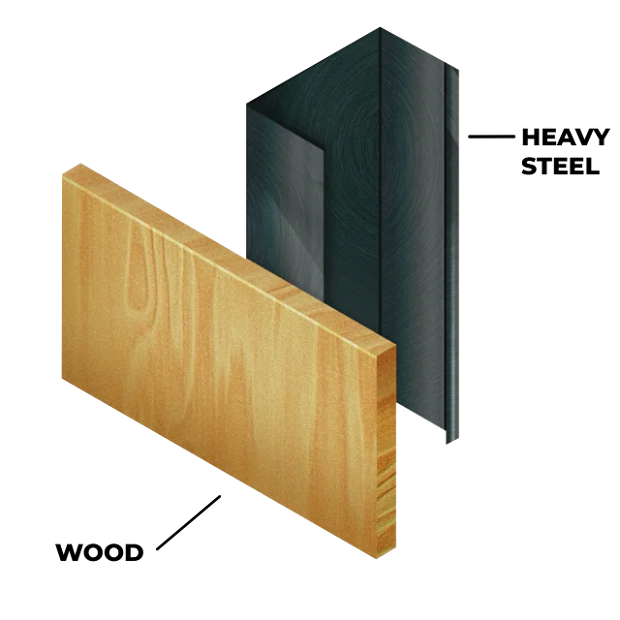

Apšuvuma darbi, Pielietojums koksne pie metāla

Lasīt vairāk Lasīt mazāk

Saskaņotais standarts EN 14566:2008+A1:2009

Pieprasīt informāciju

Specifikācijas

Identifikācija

Preces numurs: 42GS41MW
GTIN: 8718035002075

Tehniskās specifikācijas

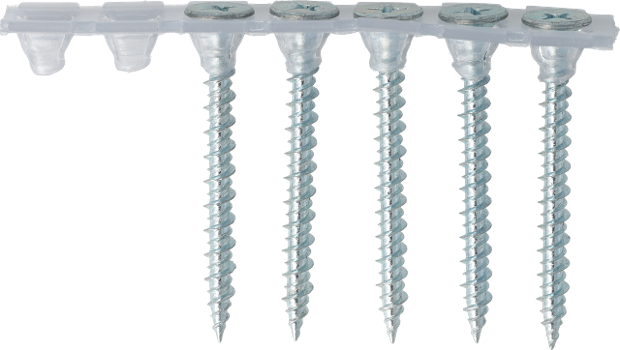

Savienošanas veids: Savilkts ar plastmasu
Vada materiāls: Standarta stiepes oglekļa tērauds
Apgriezieni minūtē: 2300, 2500, 3000, 3300 RPM

Stiprinājuma specifikācija

Apdare: Weatherex II
Pielietojuma vide: Āra apstākļos
Punkta veids: Pašurbjoši spārni
Punkta leņķis: 110 °
Skrūvju galvas veids: Plakans ar 8 smailēm
Skrūvju padziļinājums: Kvadrāts 2
Skrūvju vītnes veids: Smalks
Stiprinājumu daudzums uz sloksnes/spoles: 50 - 50
Skrūvju garums: 41.0 mm
Skrūvju diametrs: 4.2 mm

CE specifikācija

DOP No: 42GS41MW
Paziņojums par materiālu uz CE marķējuma: Neleģētais tērauds
Pakalpojuma klase: 3
Iekšējais vītņotais diametrs: 3.5 mm
Vītņotās daļas garums: 29.3 mm
Saskaņotais standarts: EN 14566:2008+A1:2009

Netehniskas specifikācijas

Iepakojuma daudzums: 1000

Loģistikas specifikācija

Neto svars: 3.5 kg

Saistītie instrumenti

Lejupielādes

42GS41MW_lv_CommercialProductSheet_1.10_1757436184011 PDF 1 Mb
42GS41MW_lv_DeclarationOfPerformanceDoP_1.2eu_1757436122644 PDF 61 Kb
