HC gludas kasešu naglas 3,1x90mm

pieskarties attēlam, lai pietuvinātu

Apraksts

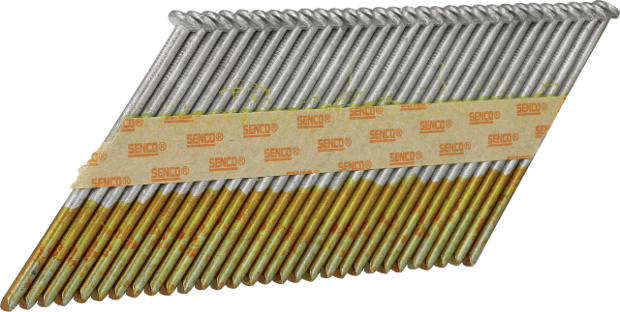

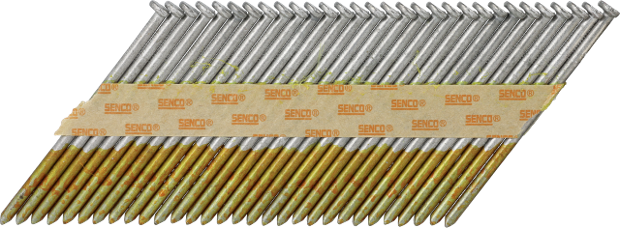

3,1 mm gludas kasešu naglas, karsti cinkotas, Sencoted

Lasīt vairāk Lasīt mazāk

Izmantošana

Ierāmēšana, Apšuvuma darbi, Grīdas apakšklāji, Seguma ieklāšana, Kopnes, Paletes un redeļu kastes

Lasīt vairāk Lasīt mazāk

Saskaņotais standarts EN 14592:2008+A1:2012

Pieprasīt informāciju

Specifikācijas

Identifikācija

Preces numurs: HC59ESBKR
GTIN: 8715274027623

Tehniskās specifikācijas

Stiprinājumu leņķis: 34 °
Savienošanas veids: Savilkts ar papīru
Vada materiāls: Standarta stiepes oglekļa tērauds

Stiprinājuma specifikācija

Apdare: Karsti cinkots 3
Pārklājums: Pārklāts
Pielietojuma vide: Āra apstākļos
Naglu veids: CH slokšņu naglas
Naglu galvu veids: Galva ar klipsi
Naglu kāta veids: Līdzens kāts
Punkta veids: Ass kalts
Punkta leņķis: 40 °
Vinies skersmuo: 3.1 mm
Stiprinājumu daudzums uz sloksnes/spoles: 29 - 31
Naglu garums: 90.0 mm

CE specifikācija

Raksturīgā uzgaļa izvilkšana caur parametru: 30.1 N/mm²
CE stiprinājuma veids: Apaļa šķērsgriezuma vienkārša kāta nagla
DOP No: HC59ESBKR
Aizsardzības līmenis mikronos: 55
Pakalpojuma klase: 3
Pārklājuma veids: Pārklājuma 3. veids
Pārklājuma garums: 60.0 mm
Uzgaļa šķērsgriezuma laukums: 30.0 mm
Raksturīgais atdeves moments: 2570.0 Nmm
Raksturīgā stiepes izturība: 633.0 N/mm²
Saskaņotais standarts: EN 14592:2008+A1:2012
Raksturīgā izņemšanas parametra: 3.1 N/mm²

Netehniskas specifikācijas

Iepakojuma daudzums: 2000

Loģistikas specifikācija

Neto svars: 11.35 kg

Saistītie instrumenti

Lejupielādes

HC59ESBKR_lv_CommercialProductSheet_1.6_1752227562578 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 124 Kb
HC59ESBKR_lv_DeclarationOfPerformanceDoP_1.0eu_1729043931875 PDF 64 Kb
