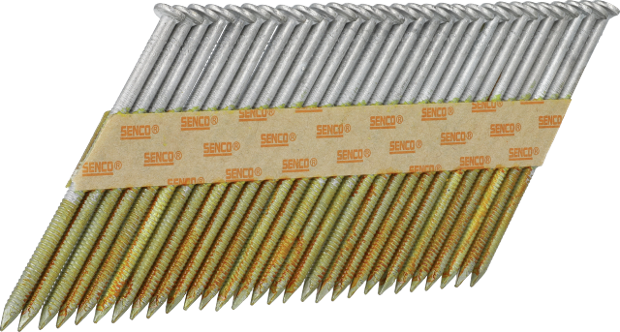

GE rievotas kasešu naglas 2,87x65mm

pieskarties attēlam, lai pietuvinātu

Apraksts

2,87mm rievotas kasešu naglas, karsti cinkotas, Sencoted

Lasīt vairāk Lasīt mazāk

Saskaņotais standarts EN 14592:2008+A1:2012

Pieprasīt informāciju

Specifikācijas

Identifikācija

Preces numurs: GE55ASBKR
GTIN: 8715274028514

Tehniskās specifikācijas

Stiprinājumu leņķis: 34 °
Savienošanas veids: Savilkts ar papīru
Vada materiāls: Standarta stiepes oglekļa tērauds

Stiprinājuma specifikācija

Apdare: Karsti cinkots 3
Pārklājums: Pārklāts
Pielietojuma vide: Āra apstākļos
Naglu veids: CH slokšņu naglas
Naglu galvu veids: Galva ar klipsi
Naglu kāta veids: Gredzena kāts
Punkta veids: Dimants
Punkta leņķis: 40 °
Vinies skersmuo: 2.87 mm
Stiprinājumu daudzums uz sloksnes/spoles: 29 - 31
Naglu garums: 65.0 mm

CE specifikācija

Raksturīgā uzgaļa izvilkšana caur parametru: 20.3 N/mm²
CE stiprinājuma veids: Apaļa šķērsgriezuma gredzena kāta nagla
DOP No: GE55ASBKR
Aizsardzības līmenis mikronos: 55
Pakalpojuma klase: 3
Pārklājuma veids: Pārklājuma 3. veids
Pārklājuma garums: 43.0 mm
Uzgaļa šķērsgriezuma laukums: 30.0 mm
Vītņotās daļas garums: 45.0 mm
Raksturīgais atdeves moments: 2525.0 Nmm
Raksturīgā stiepes izturība: 695.0 N/mm²
Saskaņotais standarts: EN 14592:2008+A1:2012
Raksturīgā izņemšanas parametra: 7.5 N/mm²

Netehniskas specifikācijas

Iepakojuma daudzums: 2000

Loģistikas specifikācija

Neto svars: 7.22 kg

Saistītie instrumenti

Lejupielādes

GE55ASBKR_lv_CommercialProductSheet_1.6_1751481791327 PDF 1 Mb
DOP VS-CPR-201305-S027 PDF 197 Kb
GE55ASBKR_lv_DeclarationOfPerformanceDoP_1.0eu_1729025071507 PDF 64 Kb
